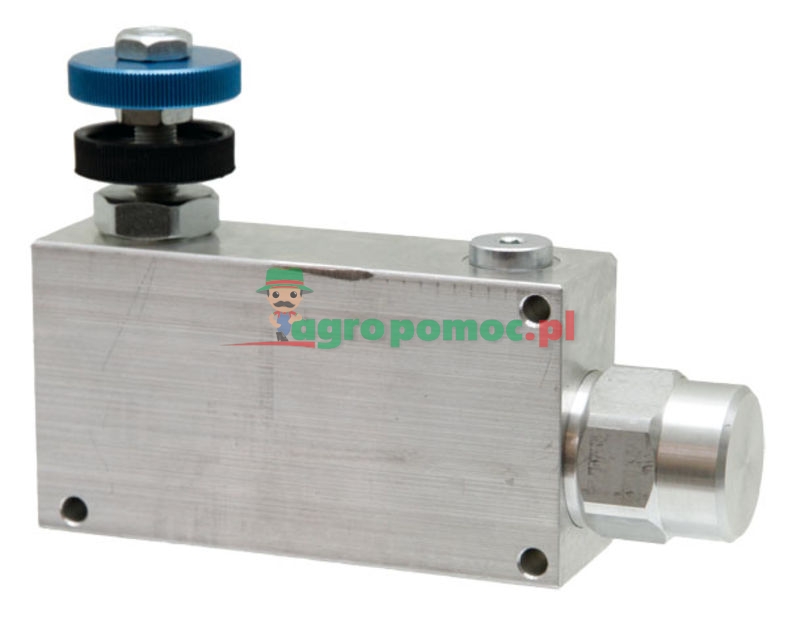

3-way flow-regulating valve DWST-P-12
Product code: 85036038Product reference: 85036038
Price:
294,34 € Inc. VAT
Availability:
in a warehouse
Description
- Connection BSP: 3/4"
- P max (bar): 350
- Q-E max. (l/min): 120
- Q-P max. (l/min): 100

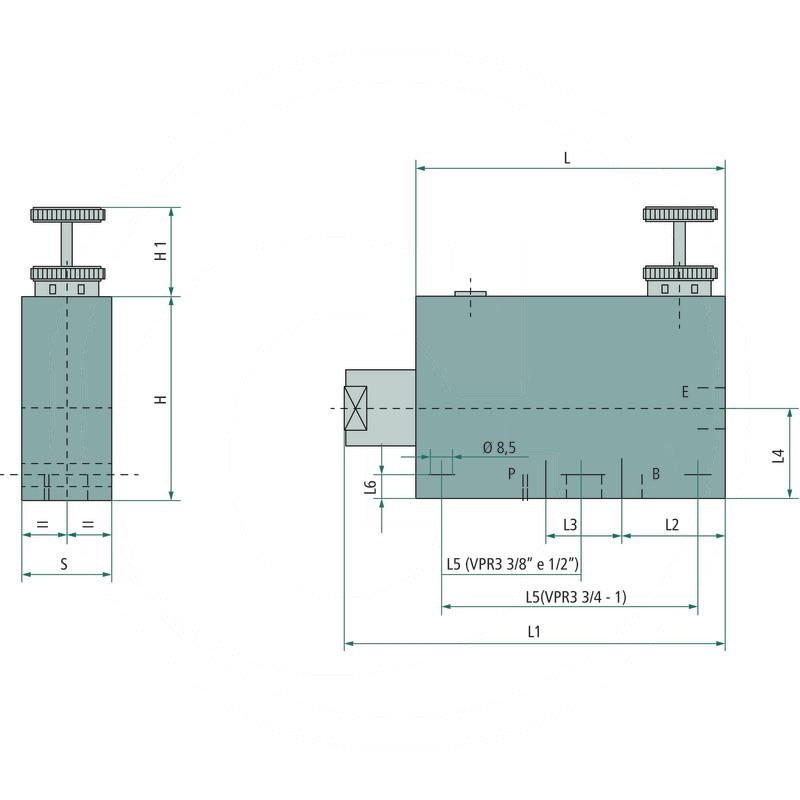

- L (mm): 155
- L1 (mm): 1897
- L2 (mm): 50
- L3 (mm): 44
- L4 (mm): 37
- L5 (mm): 115
- L6 (mm): 10
- H (mm): 90
- H1 (mm): 35
- S (mm): 50
- Weight: 4.92 kg
