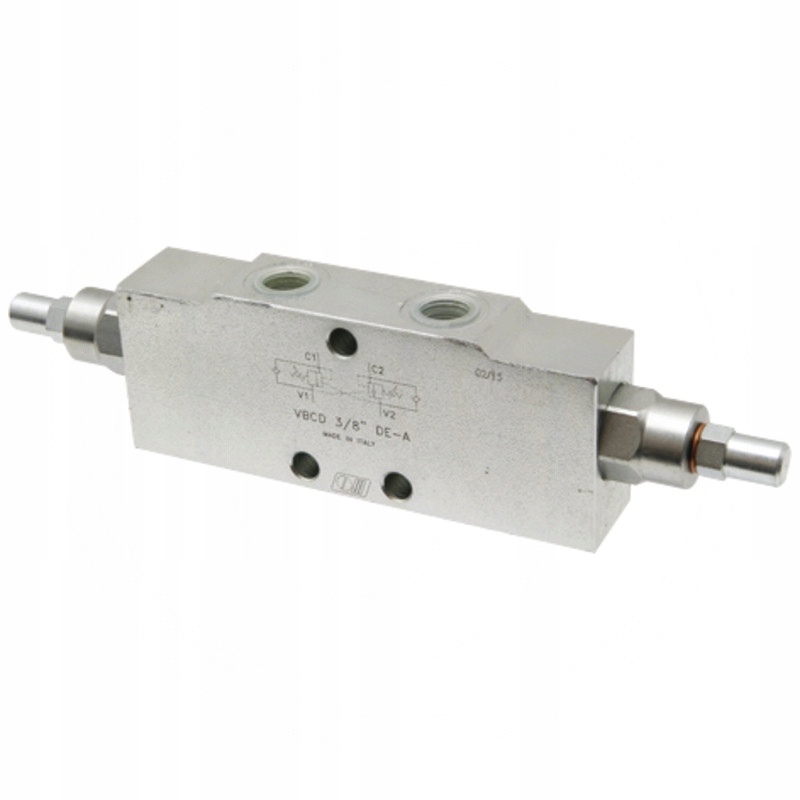

Lowering check valve SBV-D-06

Product description: Twin Overcenter and Counterbalance Valve G3/8

• Connection (BSP): 3/8"
• Control Pressure Ratio: 1:4
• Max Operating Pressure (bar): 210
• Max Flow Rate (l/min): 37

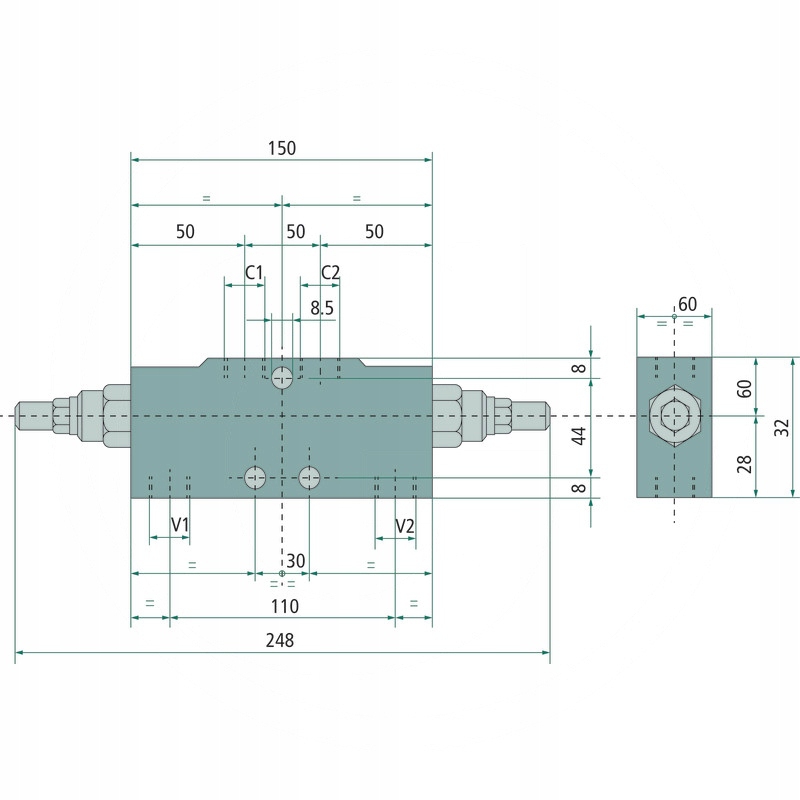

• A (mm): 141
• B (mm):
• C (mm): 92

The main function of the overcenter and counterbalance valve is to prevent the uncontrolled movement of hydraulically positioned loads or the run-away of an actuator, for example, when using a distributor or in the absence of pump pressure. The valve is also suitable for speed control and/or as a safety valve for actuators or motors in case of hose rupture.

• Nominal Operating Pressure PN: PN 350 bar
• Connection: 3/8"-3/4 BSP
• Flow: 50 - 120 l/min
• Operating Temperature: -25°C to +100°C
• Version: Chromium(VI)-free steel housing
