Rut marker valve GMVS-3/4 UNF

Product code: 85038072

Product reference: GMVS-3/4 UNF

Price: 610.47610,47 € Inc. VAT

Availability: in a warehouse

Description

Price unit: piece
Pack of: 1

Availability

Connection BSP: 3/4 UNF
P max (bar): 250
Q max (l/min): 40
Bolt tightening torque Nm: 30
Connection: 3/4"-16 UNF
Dimensions (mm): 110x160x40

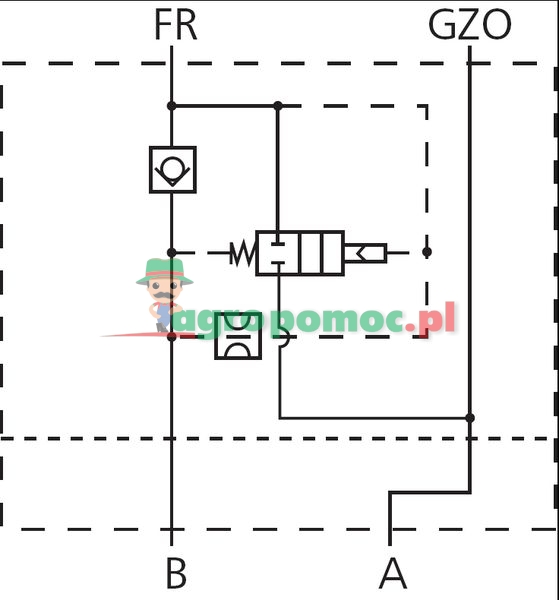

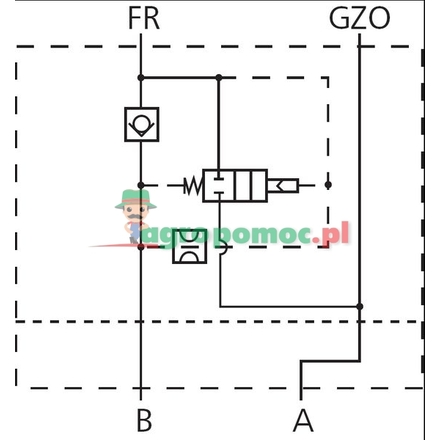

Fig.: 2 (with sensor carrier)
Nominal flow l/min: 15
Operating pressure max. (bar): 250
Technical data: Max. working pressure: 250 bar Nominal flow: 40 l/min Starting torque: 30 Nm ports: 3/4"-16 UNF Dimensions: 130x160x40 mm
Weight: 1.8 kg
