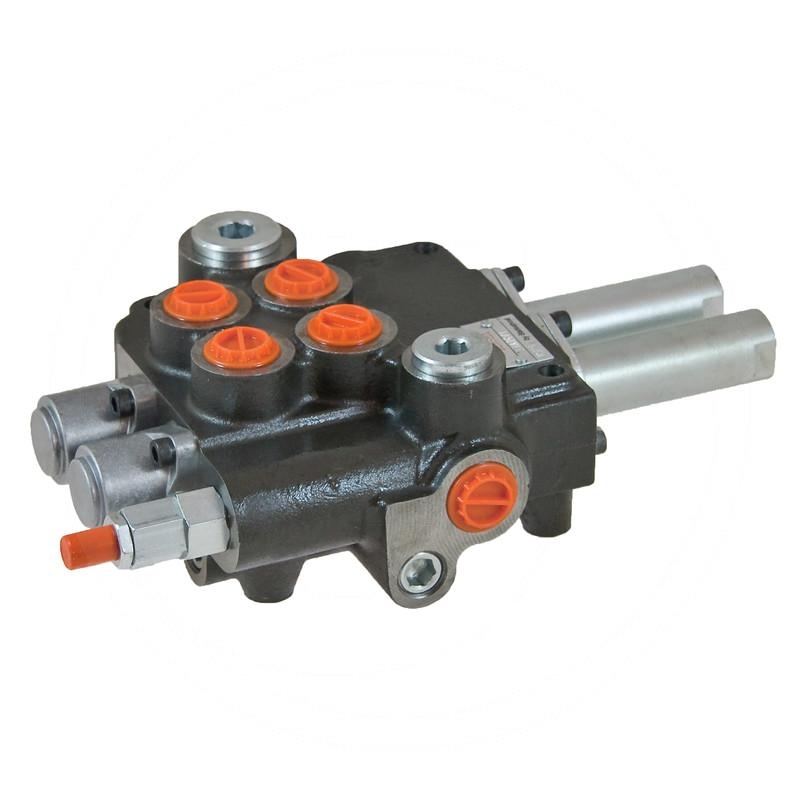

Valve P80 2x DA (with connection bells)
Product code: 87000944Product reference: 87000944
Price:
200,17 € Inc. VAT
Availability:
in a warehouse
Description
nom. working pressure P - N: 250 bar
nom. working pressure A - B: 300 bar
nom. working pressure T: 50 bar
Connection: TN 3/4" BSP
Connection: PAB 1/2" BSP
flow: 80 l/min
oil temperature: -15° C to +80° C
Version: cast steel monoblock valve, pollution level 10 according to NAS1638
internal leakage: approx. 18 cm³/min. at 120 bar
Attributes
| Connection P-T-N: | 3/4 |
| Connection A-B: | 1/2 |
| Version: | 4/3-way, 2 x double-acting, with connection bells for Bowden cables |

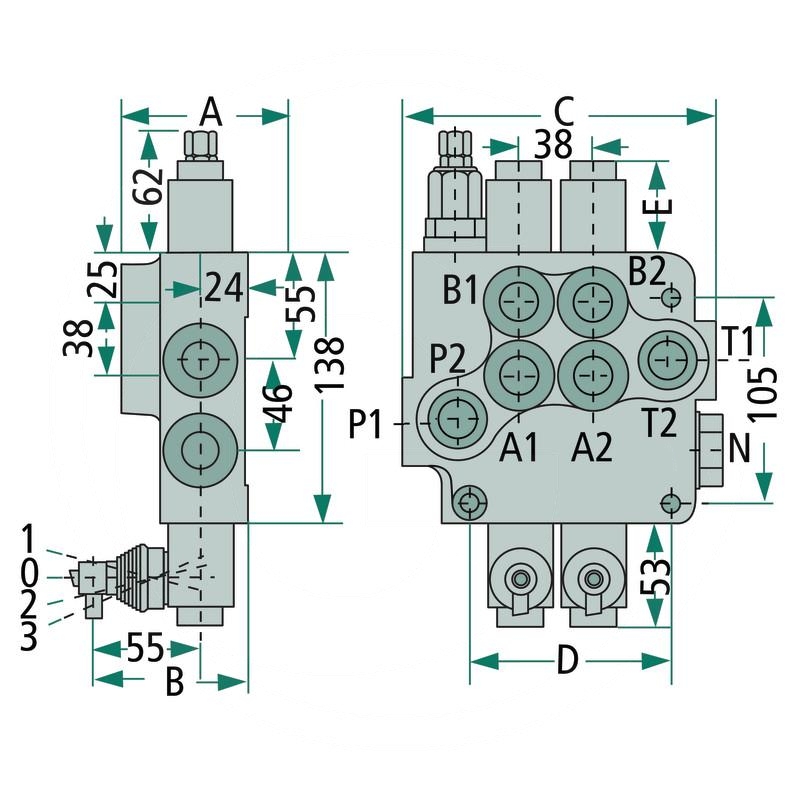

| A (mm): | 65 |
| B (mm): | 80 |
| C (mm): | 198 |
| D (mm): | 141 |
