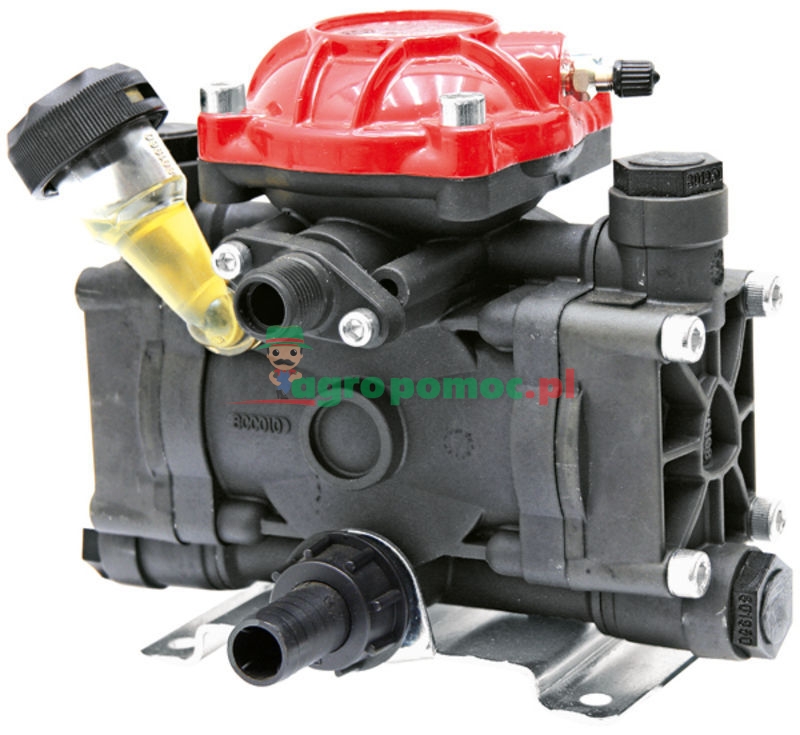

Annovi Reverberi Diaphragm pump
Product code: 670158
Price:
800,53 € Inc. VAT
Availability:
in a warehouse
Description
Price unit:
piece
Pack of: 1
Pack of: 1
Availability

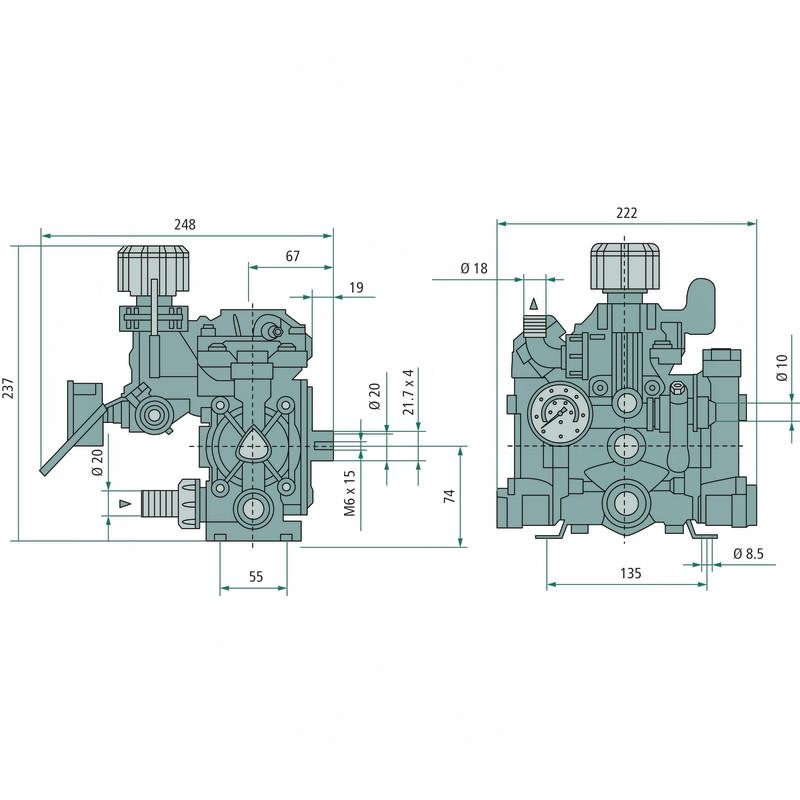

Fig. no.:
1
- Output capacity max. (l/min.): 25
- Pressure max. (bar): 25
- r.p.m.: 650
- Suction Ø (mm): 20
- Pressure Ø (mm): 13
- Input shaft: Ø 20 mm
- Capacity (l/min.): 25
- Depth x width x height (mm): 162 222 185
- PTO shaft connection (imperial): cylindrical shaft, Ø 15.87 mm
- Pressure (bar): 25
- rpm: 650
- Weight: 4.32 kg
