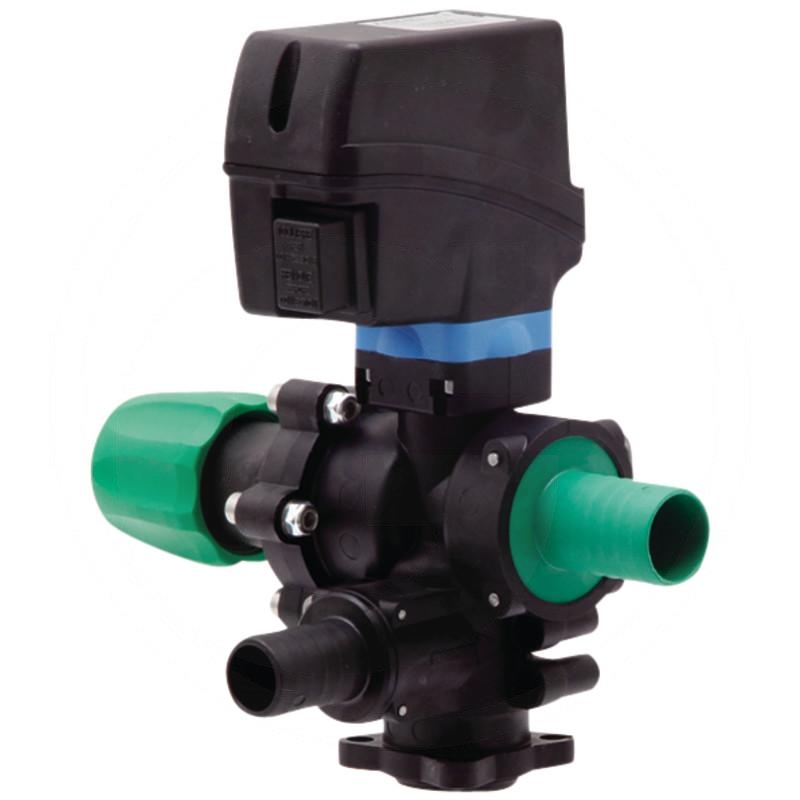

ARAG Main switching valve

• Pressure (bar): 20
• Volts: 12V / 0,5A
• Switching time (seconds): 0,6
• Flow rate (l/min): 150
• PCD (mm): 41 x 41
• Version: • Housing made of glass fibre reinforced nylon
  • Internal parts made of Delrin® and stainless steel AISI 303
  • Viton® seals
  • Resettable internal fuse (power supply interrupted for 20 seconds)
  Inlet 25 mm, bypass 30 mm
• Weight: 1.37 kg
