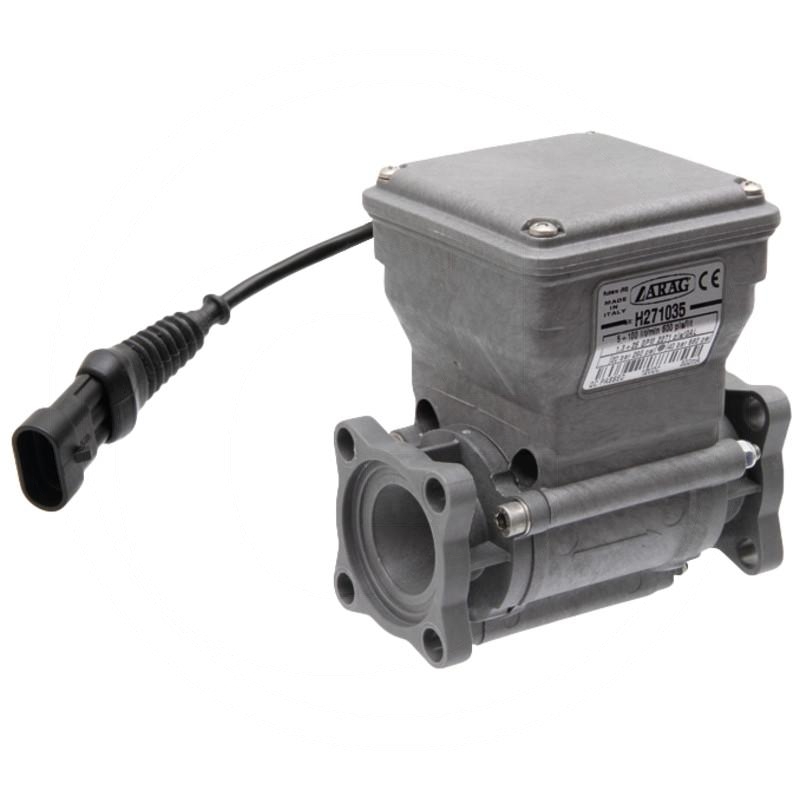

ARAG Electromagnetic flow meter

• Pressure (bar): 40
• Flow rate (l/min): 5 - 100
• Version: The new ORION 2 is equipped with sealed connecting plugs integrated into the housing and an LED operating status display

  Advantages
  • No mechanical moving parts
  • Insensitive to the density and viscosity of the liquid
  • Low sensitivity to turbulence
  • High level of accuracy
  • Low maintenance

  Technical details
  • Typical error 0,5% of the full-scale deflection
  • Operating pressure up to 40 bar
  • Supply voltage 11÷15 Vdc
  • Impulse output 0-12 Vdc with frequency proportional to throughput
  • Maximum consumption 300 mA
  • Signal only emitted with moving liquids
  • Flanged connections
  • Machine parts coming in contact with the spray liquid are made of polypropylene and stainless steel 316
