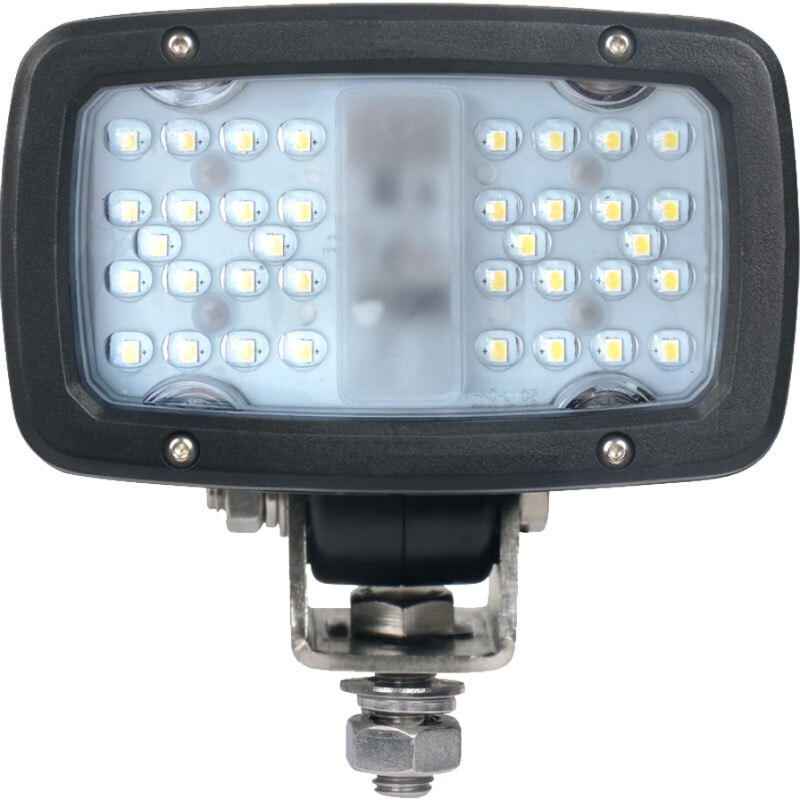

GRANIT LED Work Light
Product code: 7070010290Product reference: 7070010290, 060502070, G312900111031, 04450666
Price:
62,72 € Inc. VAT
Availability:
in a warehouse
Description
Long-range illumination
Attributes
| Nominal voltage (V) | 12 / 24 |
| Voltage range (V) | 10 - 30 |
| Bulb | LED |
| With bulb | yes |
| Light function | long-range illumination |
| Dimensions W x H x D (mm) | 160 x 98.5 x 66.6 |
| Mounting type | vertical / hanging; M8 |
| Connection | open cable ends, tinned (red + / black -) |
| Protection class | IP67 / IP6K9K |
| Width (mm) | 160 |
| Type | square |
| Height (mm) | 98.5 |
| Material | Housing: aluminium; lamp cover: plastic; mounting: stainless steel |
| Depth (mm) | 66.6 / 112 |
| Mounting | M8 |
| Number of LEDs | 36 |
| Cable length (mm) | 1500 |
| Certificate | ECE R10; CE; RoHS |
| Power consumption (W) | 48 |
| Mounting dimension (mm) | 130 |
| Luminous efficacy (lm) | 6300 |
| Theoretical luminous flux (lm) | 11160 |
| EMC | CISPR25 Class 3 |
| Light colour (K) | 5000 - 6500 |
| Operating temperature (°C) | -40 / +50 |
| Light beam (mm) | 149 x 88 |
| Manufacturer | Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Germany, www.granit-parts.com, info@granit-parts.com |
| Weight | 1.27 kg |
| Catalogue | Electrical installation (p. 744) |
