• ISO no.: 16 B-2

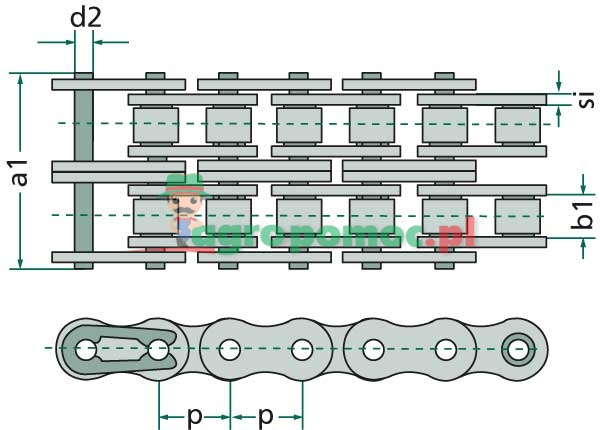

• Pitch x inner width p x b1 (imperial): 1 x 0,67
• Pitch x inner width p x b1 (mm): 25,4 x 17,02
• Roller Ø d1 max. (mm): 15,88
• Pin Ø d2 max. (mm): 8,28
• Inner fishplate thickness Si (mm): 4,15
• Max. width connecting link a1 (mm): 68
• Breaking load DIN/ISO min. (N): 106000
• Pitch x inner width p x b1 min. (mm): 25,4 x 17,02
• Weight: 27.51 kg
