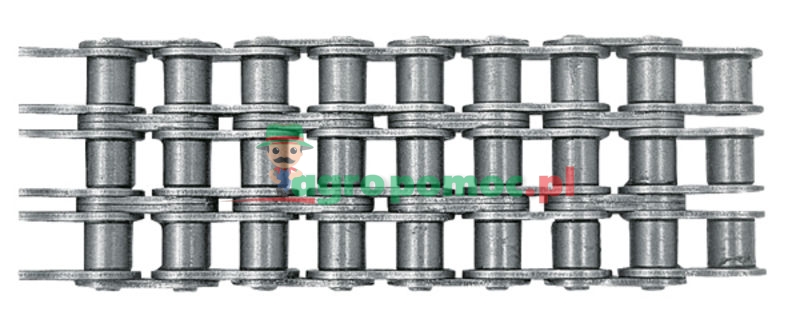

• ISO no.: 08 B-3

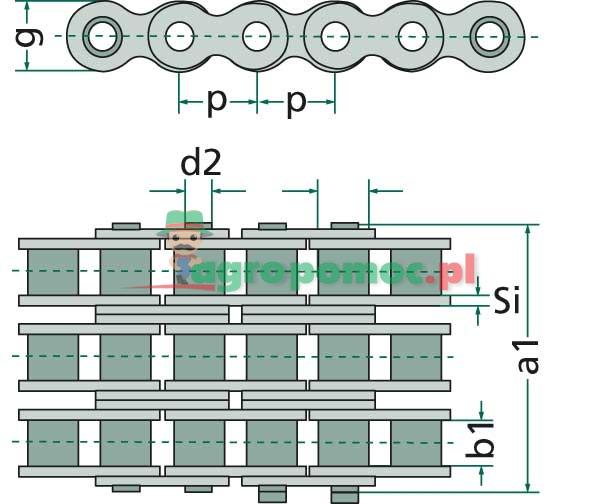

• Pitch x inner width p x b1 (imperial): 1/2" x 5/16"
• Pitch p (imperial): 0,5
• Pitch p (mm): 12,7
• Clearance width b1 (mm): 7,75
• Roller Ø d1 (mm): 8,51
• Bolt Ø d2 max. (mm): 4,45
• Fishplate height g (mm): 11,6
• Length of pin (mm): a1 max.: 44,9
• Breaking load DIN/ISO min. (N): 44500
• Inner link width b2 max. (mm): 11,3
• Weight: 10.21 kg
