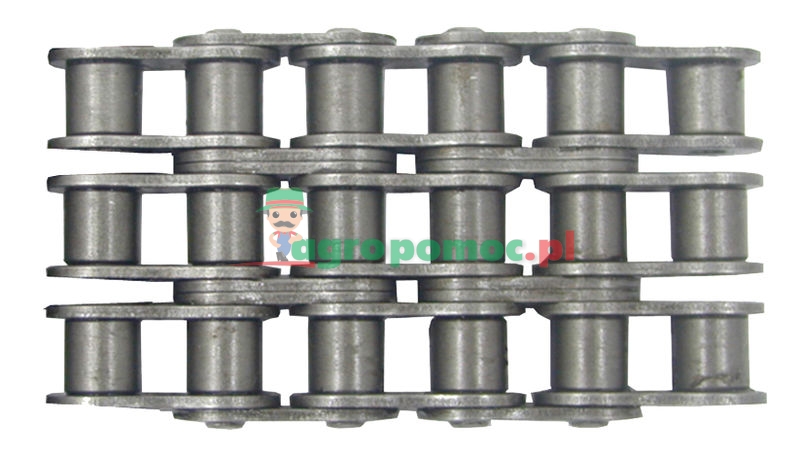

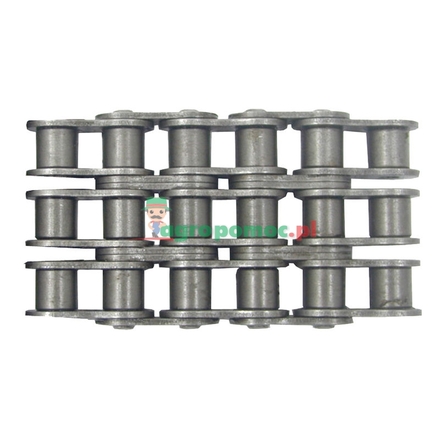

Rexnord Roller chain
Product code: 835RPASA60-3/5
Price:
1 057,01 € Inc. VAT
Availability:
in a warehouse
Description
Price unit:
PP
Pack of: 5 m
Pack of: 5 m
Availability
- ANSI no.: 60-3

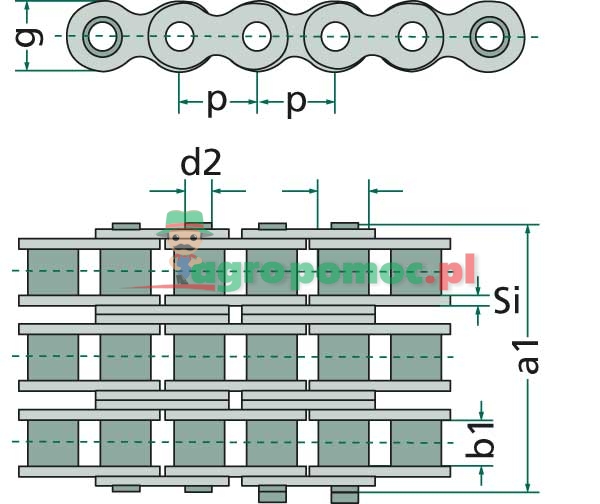

- Pitch p (imperial): 3/4"
- Pitch p (mm): 19,05
- Clearance width b1 (mm): 12,57
- Roller Ø d1 (mm): 11,91
- Bolt Ø d2 max. (mm): 5,94
- Inner link width b2 max. (mm): 17,7
- Fishplate height g (mm): 17,7
- Length of pin (mm): a1 max.: 71,4
- Breaking load DIN/ISO min. (N): 93900
- Weight: 4.81 kg
