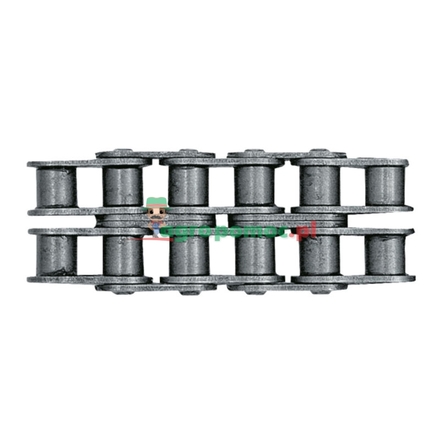

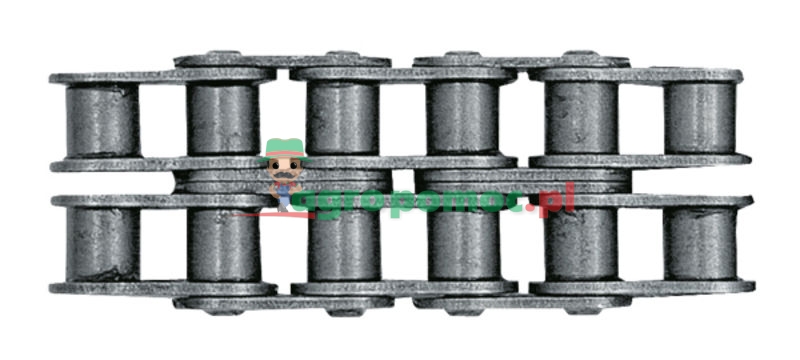

Rexnord double roller chain
Product code: 835RPASA80H-2/5
Price:
1 493,18 € Inc. VAT
Availability:
in a warehouse
Description
Price unit:
mtr.
Pack of: 5 m
Pack of: 5 m
Availability
- ANSI no.: 80 H-2
- Pitch p (imperial): 1"
- Pitch p (mm): 25
- Clearance width b1 (mm): 15,75
- Roller Ø d1 (mm): 15,88
- Bolt Ø d2 max. (mm): 7,92
- Strap thickness si (mm): 4
- Fishplate height g (mm): 23,5
- Length of pin (mm): a1 max.: 68,6
- Breaking load DIN/ISO min. (N): 112200
- Inner link width b2 max. (mm): 24,3
- Weight: 6 kg
