• Chain no.: RE519

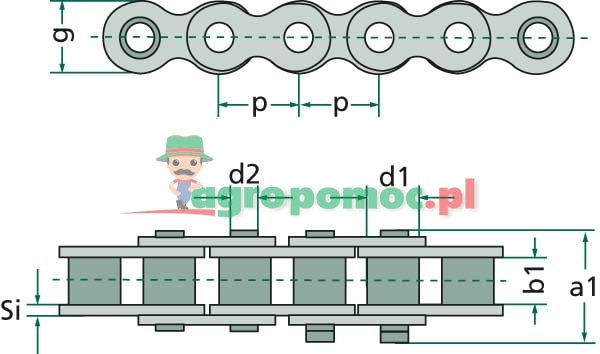

• Pitch p (imperial): 1"
• Pitch p (mm): 25,4
• Clearance width b1 (mm): 17,02
• Roller Ø d1 (mm): 15,88
• Bolt Ø d2 max. (mm): 8,28
• Fishplate height g (mm): 24,1
• Length of pin (mm): a1 max.: 36
• Breaking load DIN/ISO min. (N): 80000
• Inner fishplate thickness Si (mm): 4
• Pin Ø d2 max. (mm): 9
• Pitch x inner width p x b1 (imperial): 1" x 0,67
• Pitch x inner width p x b1 min. (mm): 25,40 x 17,02
• Roll length (m): 5
• Roller Ø d1 max. (mm): 15,88
• Weight: 3.1 kg
