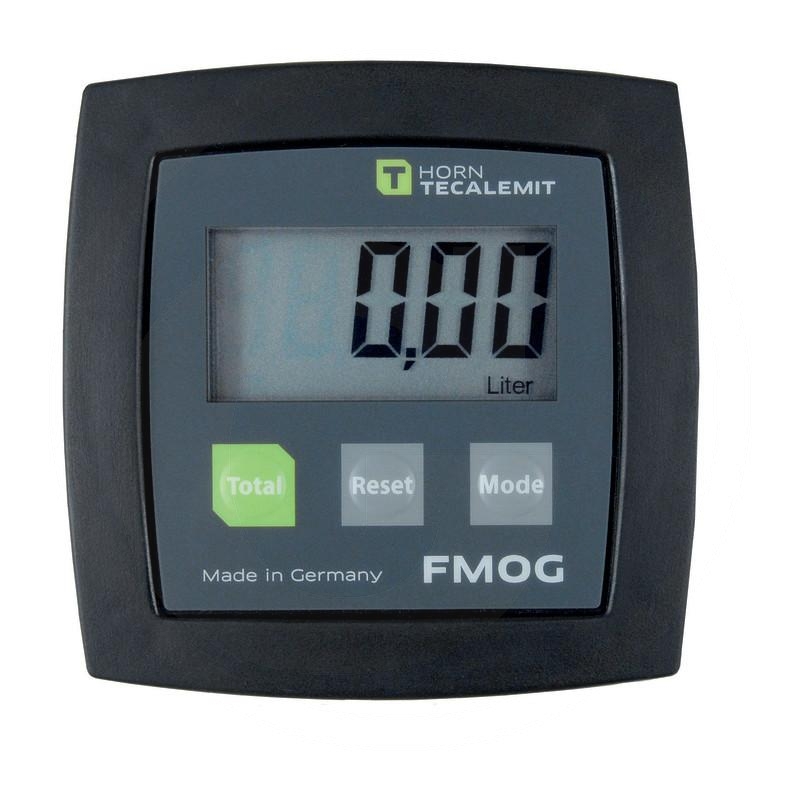

HORN TECALEMIT Flow meter

• Flowrate min./max. (l/min): 1 / 10
• Nominal pressure (bar): 10
• Burst pressure (bar): 70
• Viscosity range max. (mPas): 20 - 2000
• Connection (imperial): 1/2 female thread
• Display: 5-digit
• Keypad: 3 keys
• Measurement accuracy (%): ± 1
• Housing material: Aluminium
• Protection class: IP67
• electrical connection: 3,6 V
• Battery: Lithium (plug-in)
  Service life approx. 10 years
• Dimensions L x W x H (mm): 90 x 60 x 135
• Technical data: Flow rate min./max.: 1/10 l/minNominal pressure max.: 10 barNominal burst pressure: 70 barViscosity range: 20 - 2000mPa·sConnection: 1/2" female threadDisplay: 5-digitKeypad: 3 keysMeasurement accuracy: ± 1%Housing material: AluminiumProtection class: IP 67Electrical connection: Battery 3,6 VBattery: Lithium battery, plug-inBattery service life: approx. 10 years Dimensions (W x D x H) 90 x 60 x 135 mm
• Weight: 1.64 kg
