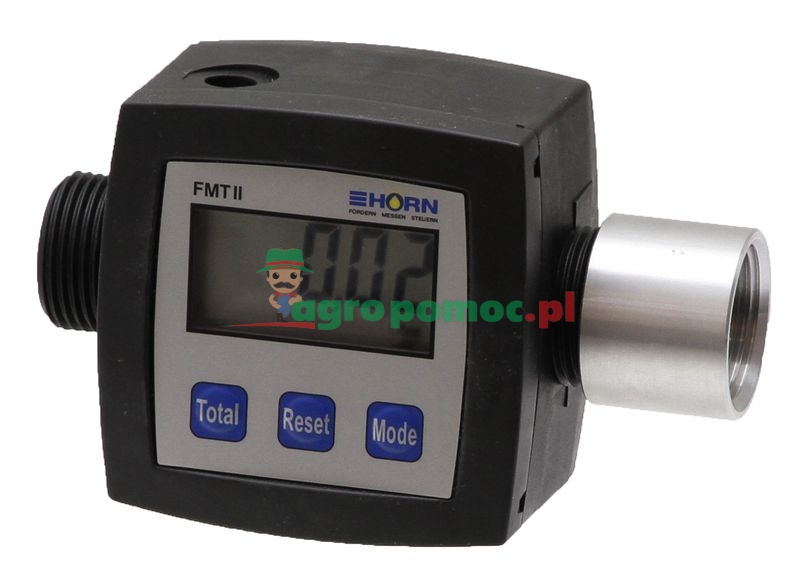

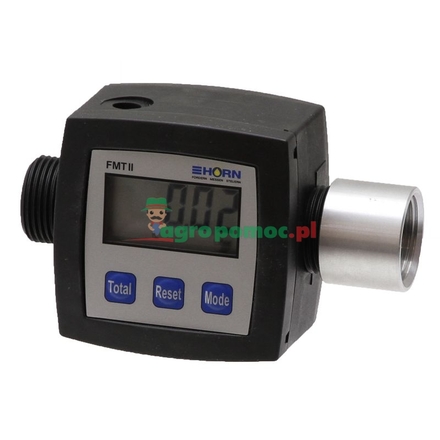

HORN TECALEMIT Flow meter

• Flowrate min./max. (l/min): 5 - 90
• Nominal pressure (bar): 4
• Viscosity range max. (mPas): 0,8 - 40
• Connection (imperial): 1 male thread & 1 female thread
• Display: 5
• Keypad: 3
• Measurement accuracy (%): without calibration ± 2
• Housing material: POM & cover: PP
• Protection class: IP 65
• Dimensions L x W x H (mm): 149 x 61 x 90
• Technical data: Flow rate min./max.: 5/90 l/minNominal pressure max.: 4 bar Viscosity range: 0,8 - 40 mPa-sConnection: 1" male thread & 2" female threadDisplay: 5 digitsKeypad: 3 keysMeasurement accuracy after calibration ± 1 %Measurement accuracy without calibration ± 2 %Housing material: POM & cover: PPProtectin class: IP 65Dimensions (W x D x H) 90 x 61 x 130 mm
• Weight: 612 g
