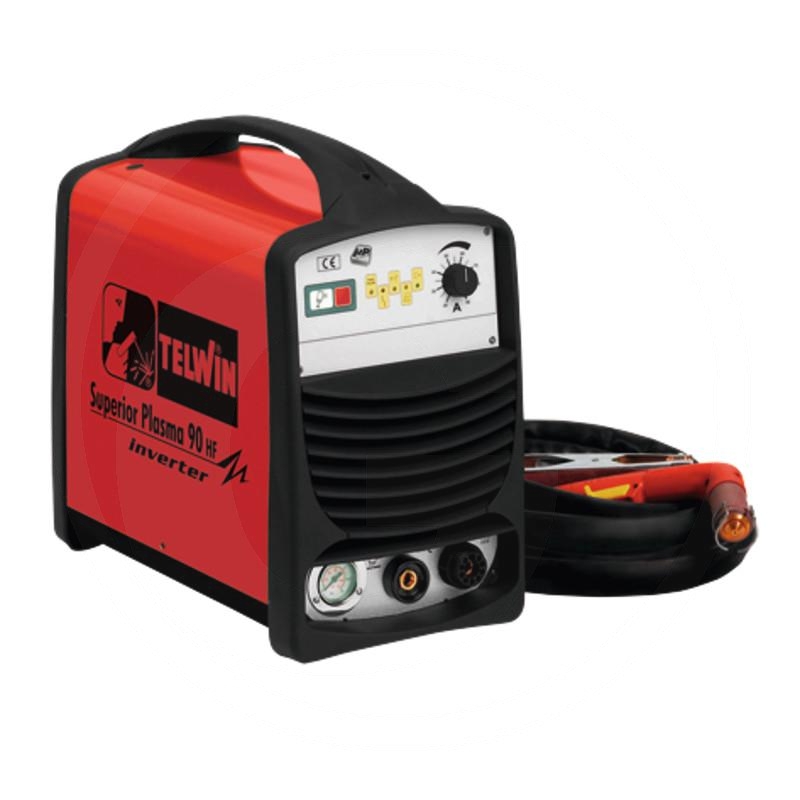

Telwin SUPERIOR PLASMA 90 HF 400V

• Voltage (Volt/Hz): 400
• Mains voltage: 400 - 3ph
• Control range (A): 20 - 90
• Current (A): 90 (40%)
• Open circuit voltage (V): 480
• Power consumption max. (kW): 12
• Mains fuse (A): 16
• Power factor (cos phi): 0,7
• Cutting thickness (mm): 30
• Compressed air flow rate (l/min): 200
• Air pressure (bar): 4-5
• Protection class: IP23
• Dimensions (mm): 505 x 250 x 430
