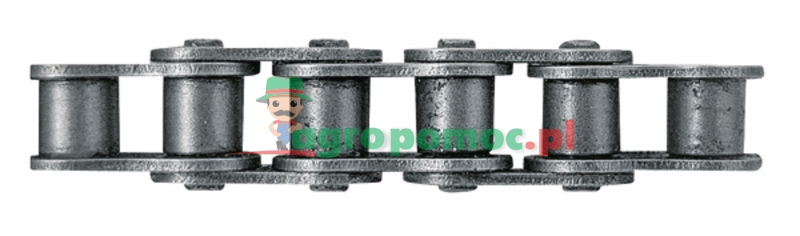

Chain
Product code: 64716775
Price:
342,25 € Inc. VAT
Availability:
in a warehouse
Description
Price unit:
PP
Pack of: 5 m
Pack of: 5 m
Availability

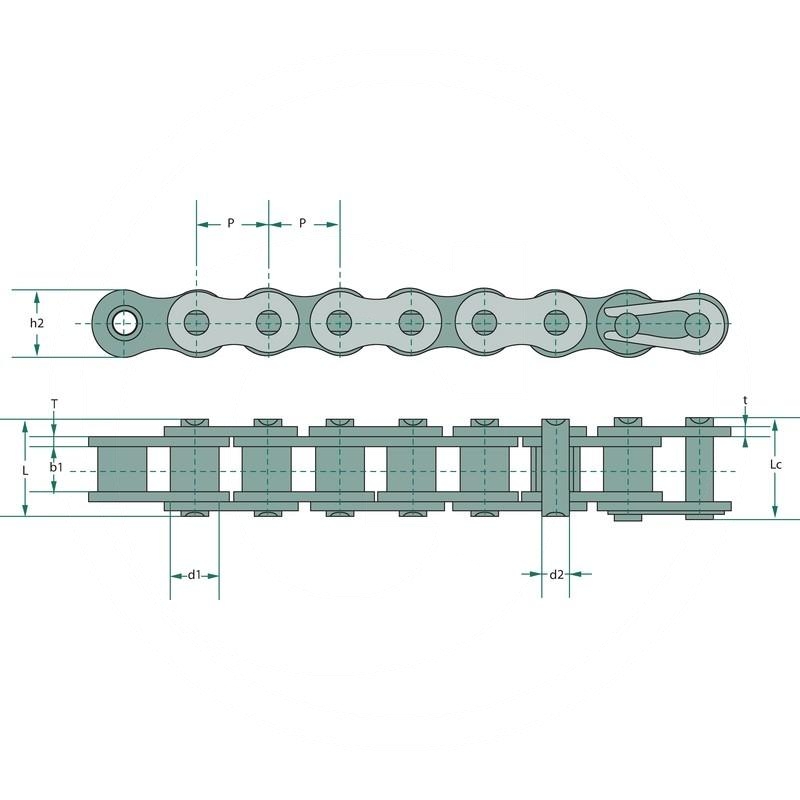

- Type: DH 12BSP-1
- Pitch p: 19,05
- Roller Ø d1 (mm): 12,07
- Clearance width b1 (mm): 11,68
- Bolt Ø d2 max. (mm): 5,72
- Length of pin (mm): L / Lc: 22,5 / 24,2
- h2 (mm): 16,00
- T (mm): 1,85
- t (mm): 1,85
- Min. breaking load (kN): 39,1
- Weight: 9.75 kg
