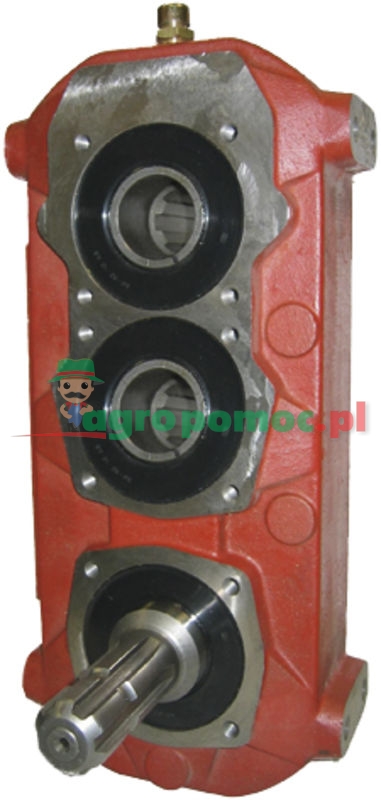

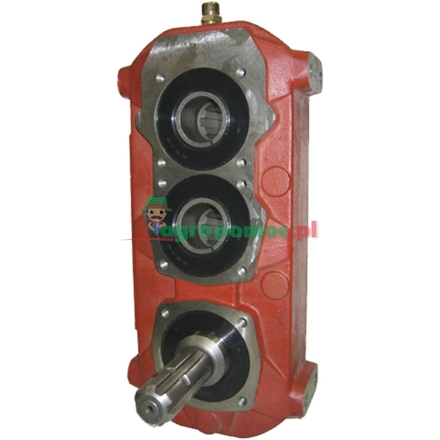

BONDIOLI & PAVESI IMR 6
Product code: 415ZBMS6046316020Product reference: 415ZBMS6046316020
Price:
2 132,36 € Inc. VAT
Availability:
in a warehouse
Description
Gear ratio:1:1 / 1:2
n1 (1/min.):540
n2 (1/min.):540
n3(1/min.):1000
Max. power (HP/kW):60/44
Description:• gray cast iron housing • z wtykowym czopem wału 1 3/8" Z6 z 2 pierścieniami osadczymi • hartowane uzębienie • granica liczby obrotów: ok. 2000 1/min. • waga: ok. 26 kg (bez oleju) • ilość oleju: ok. 1 kg • typ oleju: SAE90 EP • dostawa bez oleju • a torque support should be included as anti-rotation protection
Torque(Nm):540 1/min: n1 = 780, n2 = 780, n3 = 380
Application:• universal gear for front and rear drive, circular saws, splitters, carousel tedders, brushes, field sprayers, etc. • 3 hollow shaft mountings enable 3 gear ratios 2:1, 1:1 or 1:2 depending on the direction of rotation
Maintenance:1. oil change after 50 operating hours, the
