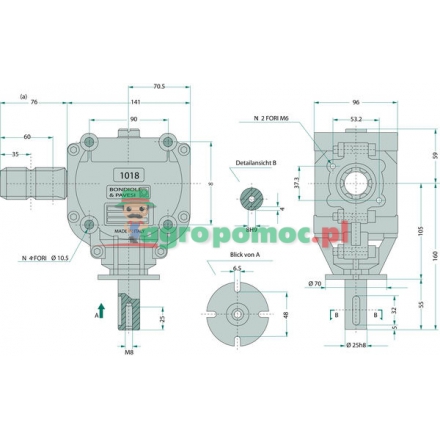

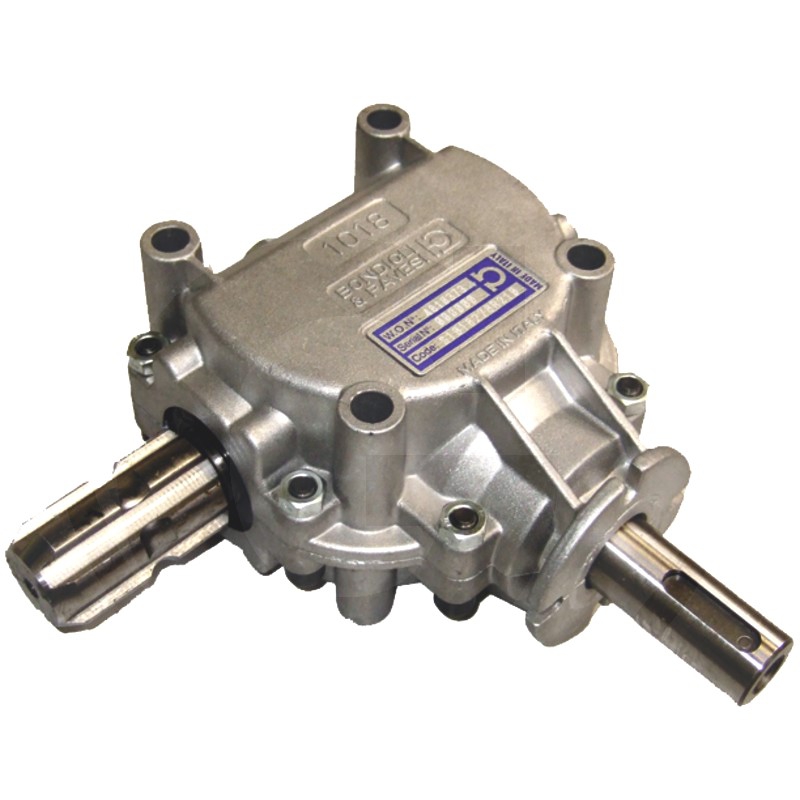

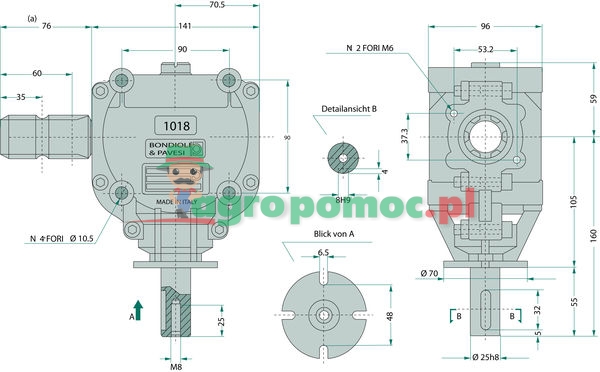

BONDIOLI & PAVESI Bevel gear 1018
Product code: 415S1018278077
Price:
493,23 € Inc. VAT
Availability:
in a warehouse
Description
Further information
Transmission:2,78:1
n1 (1/min.):540
n2 (1/min.):194
Power max. (PS/kW):540 1/min.: 5 / 4
1000 1/min.: 8 / 6
1000 1/min.: 8 / 6
Torque (Nm):540 rpm: n1 = 65, n2 = 181
1000 rpm: n1 = 56, n2 = 156
1000 rpm: n1 = 56, n2 = 156
Description:• Cast aluminium housing
• Bevel gear pair with straight teeth and case-hardened
• Speed limit: n = 3000 rpm
• Weight: approx. 4.2 kg (without oil)
• Oil filling capacity: approx. 0.25 l
• Oil type: SAE90 EP
• Supplied without oil
• Bevel gear pair with straight teeth and case-hardened
• Speed limit: n = 3000 rpm
• Weight: approx. 4.2 kg (without oil)
• Oil filling capacity: approx. 0.25 l
• Oil type: SAE90 EP
• Supplied without oil
Application:• Sweepers
• Mulchers
• Fertiliser spreaders
• General drives in gardening equipment
• Mulchers
• Fertiliser spreaders
• General drives in gardening equipment
Maintenance:1st oil change after 50 operating hours, then at intervals of 500-800 hours, or once a year
Weight:4,05 kg
