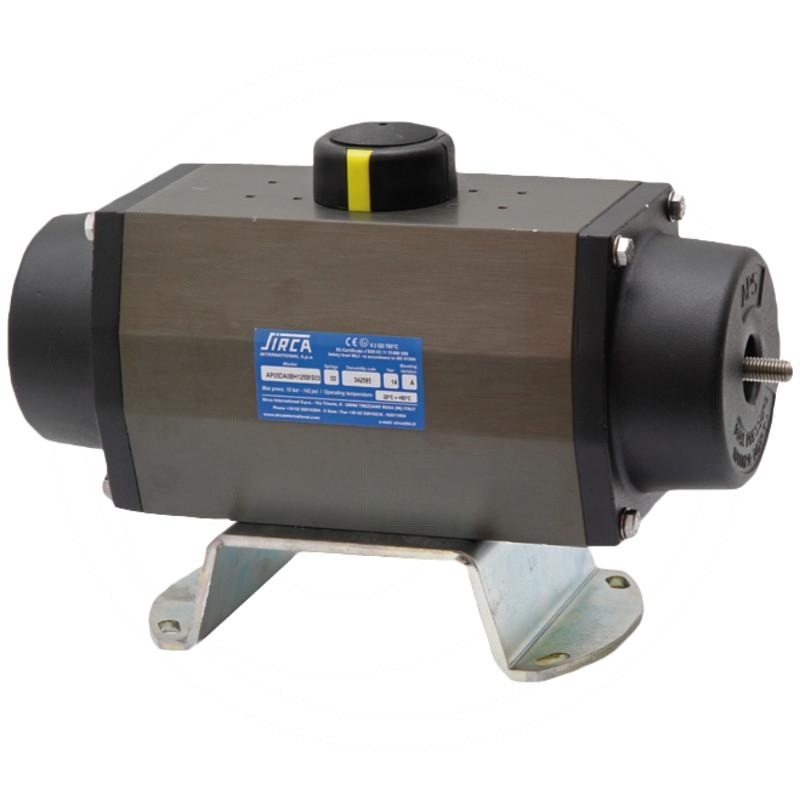

MZ Rotary cylinder

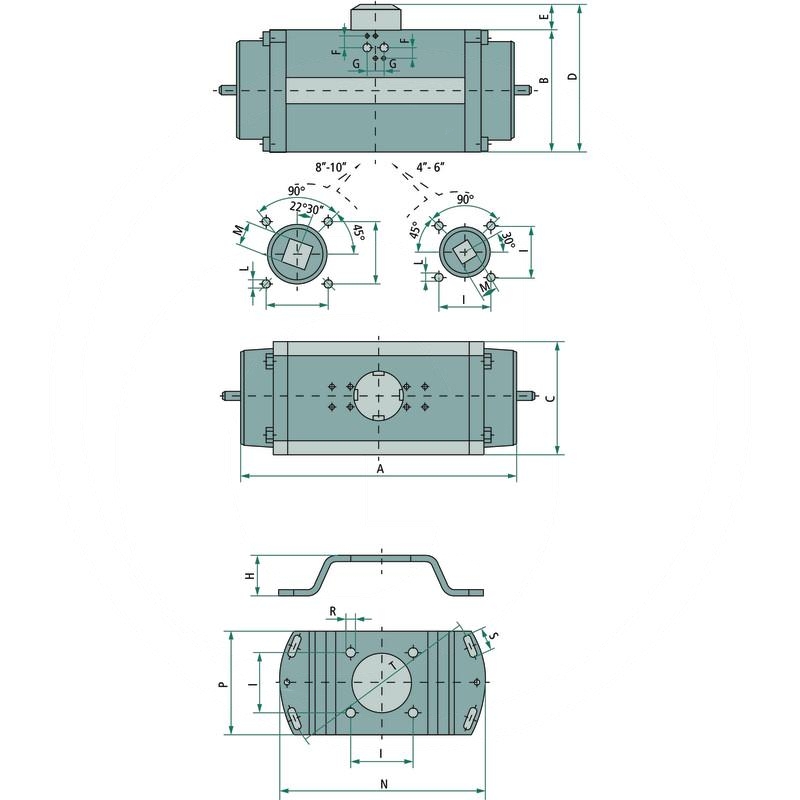

• A (mm): 25
• B (mm): 155
• C (mm): 140
• D (mm): 185
• E (mm): 30
• F (mm): 16
• G (mm): 12
• H (mm): 48
• I (mm): 72
• N (mm): 172
• P (mm): 118
• R (mm): 10,5
• S (mm): 13
• T (mm): 159,2
• B1 (mm): 155
• D working length (mm): 185
• Dimensions (mm) / Type: 15,2
• Dimensions L x W x H (mm): 48
• F max. (mm): 16
• For PTO drive shaft length (mm): 12
• For profile tube (mm): 118
• Hole Ø (mm): E: 30
• Plug in depth inner (mm): 72
• Thickness (mm): 13
• Weight: 11.45 kg
