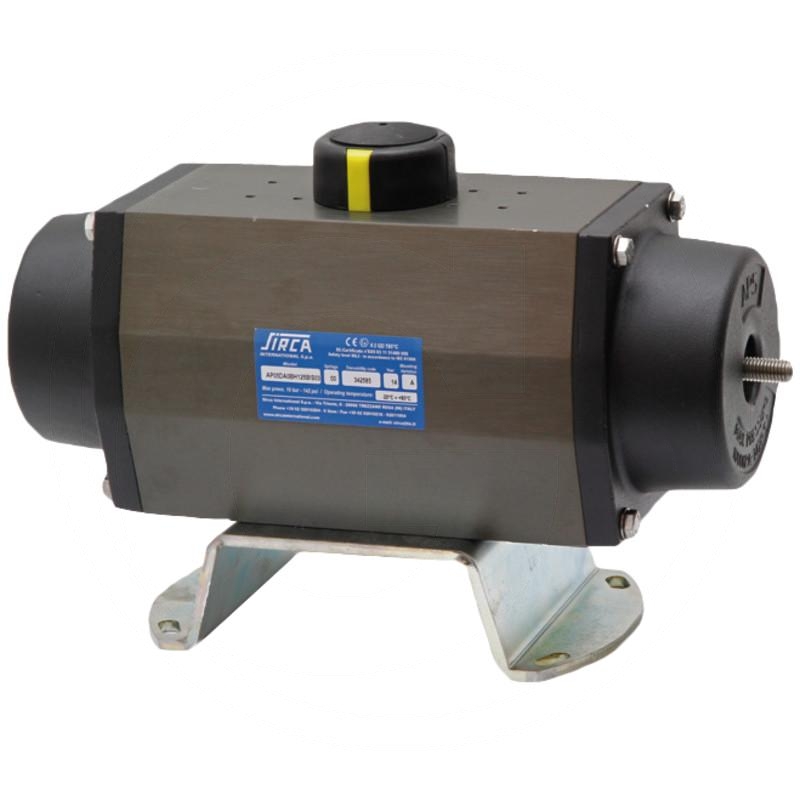

MZ Rotary cylinder

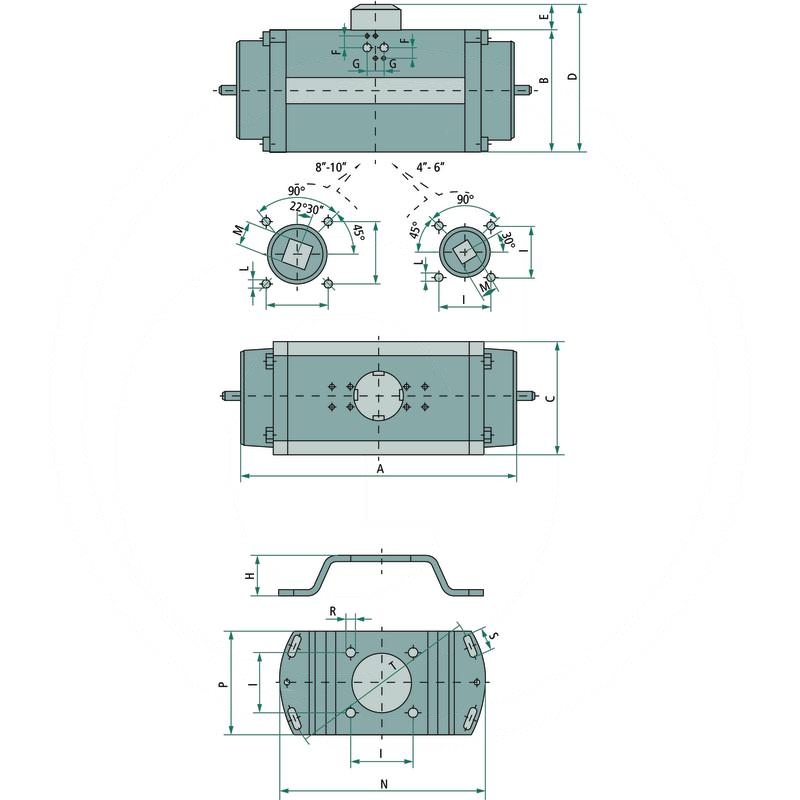

• A (mm): 34
• B (mm): 176
• C (mm): 160
• D (mm): 206
• E (mm): 30
• F (mm): 16
• G (mm): 12
• H (mm): 56
• I (mm): 88,4
• N (mm): 378
• P (mm): 190
• R (mm): 12,5
• S (mm): 33
• T (mm): 355
• B1 (mm): 176
• D working length (mm): 206
• Dimensions (mm) / Type: 355
• Dimensions L x W x H (mm): 56
• F max. (mm): 16
• For PTO drive shaft length (mm): 12
• For profile tube (mm): 190
• Hole Ø (mm): E: 30
• Hub/PCD Ø C/D (mm): 378
• Plug in depth inner (mm): 88,4
• Thickness (mm): 33
• Weight: 18 kg
