• ISO no.: 06 B-1

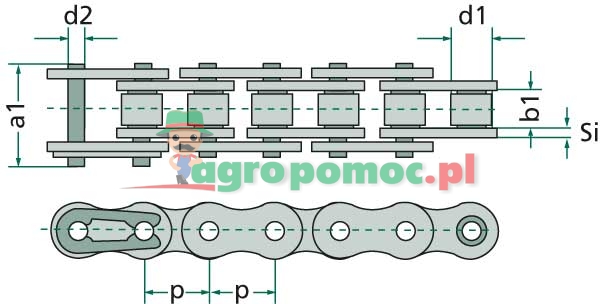

• Pitch x inner width p x b1 (imperial): 3/8 x 7/32"
• Pitch p (imperial): 0,375
• Pitch p (mm): 9,52
• Clearance width b1 (mm): 5,72
• Roller Ø d1 (mm): 6,35
• Bolt Ø d2 max. (mm): 3,28
• Inner link width b2 max. (mm): 8,53
• Fishplate height g (mm): 8,2
• Length of pin (mm): a1 max.: 13,5
• Breaking load DIN/ISO min. (N): 8900
• Weight: 2.05 kg

Page 332
