No ISO:20 B-1

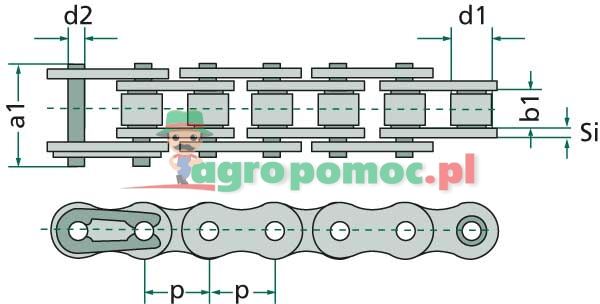

Pitch x internal width px b1 (inch):1 1/4" x 3/4"

Pitch p (inch):1.25

Pitch p(mm):31.75

Span b1 (mm):19.56

Roller-Ø d1 (mm):19.05

Pin-Ø d2 (mm):10.19

Inner link width b2 max. (mm):29

Max. tile height g (mm):25.7

Pin Length(mm):40.4

Tearing strength according to DIN/ISO N:112000

Max. pin Ø d2 (mm):10.19

Max. roller Ø d1 (mm):19.05

Roll length (m):5

Pitch x internal width px b1 min. (mm):31,75 x 19,56

Connecting link - max. width a1 (mm):40.4

When:Rexnord
