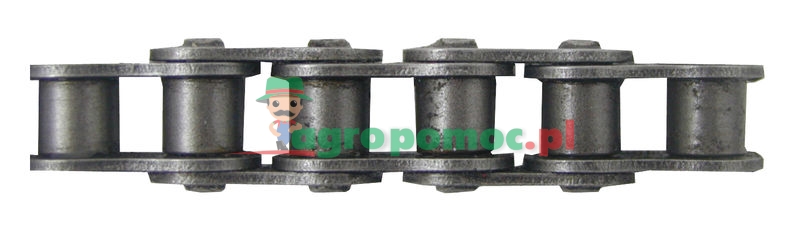

Rexnord Roller chain
Product code: 835RPASA160-1/5
Price:
1 406,54 € Inc. VAT
Availability:
in a warehouse
Description
Price unit:
PP
Pack of: 5 m
Pack of: 5 m
Availability

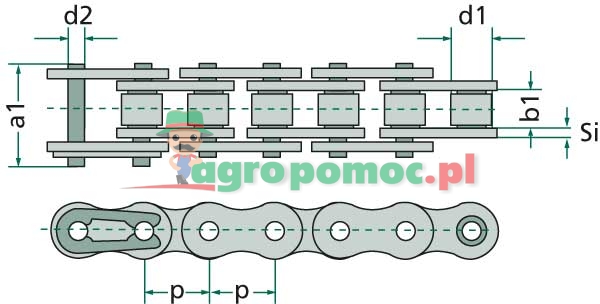

- ANSI no.: 160-1
- Pitch p (imperial): 2"
- Pitch p (mm): 50,8
- Clearance width b1 (mm): 31,55
- Roller Ø d1 (mm): 28,58
- Bolt Ø d2 max. (mm): 14,27
- Inner link width b2 max. (mm): 45,000
- Fishplate height g (mm): 47,8
- Length of pin (mm): a1 max.: 63,6
- Breaking load DIN/ISO min. (N): 223000
- Weight: 10 kg
