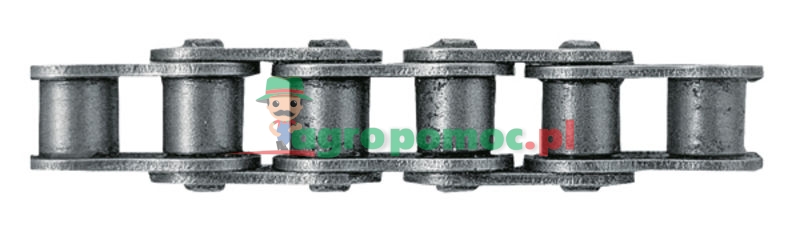

DONGHUA Roller chain
Product code: 837ASA35F
Price:
59,93 € Inc. VAT
Availability:
in a warehouse
Description
Price unit:
PP
Pack of: 5 m
Pack of: 5 m
Availability
- ISO no.: 06 C-1

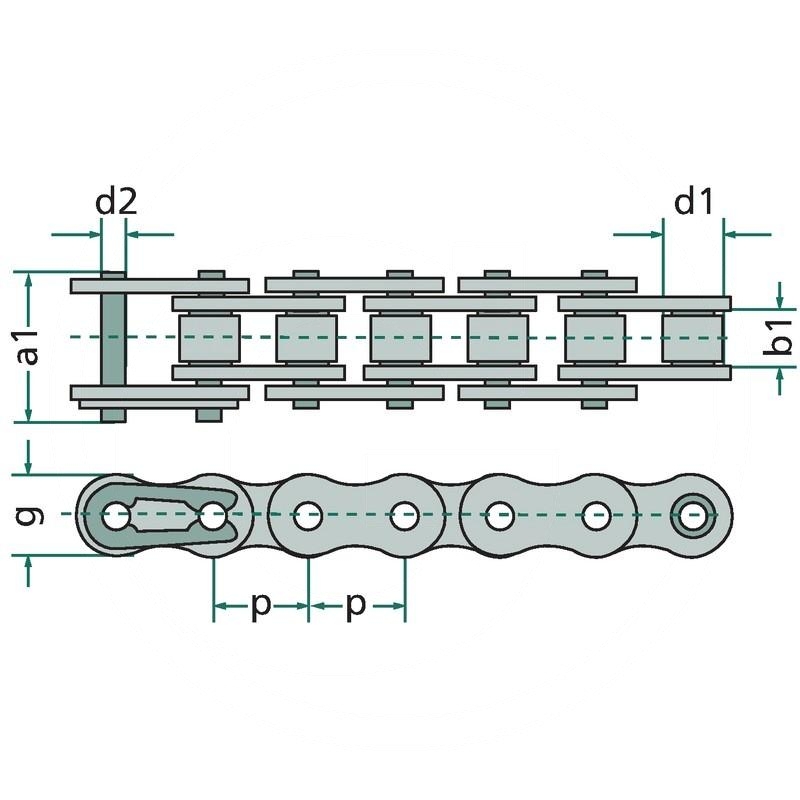

- Pitch x inner width p x b1 (imperial): 3/8 x 3/16
- Pitch x inner width p x b1 (mm): 9,53 x 4,68
- Roller Ø d1 max. (mm): 5,08
- Pin Ø d2 max. (mm): 3,59
- Inner fishplate thickness Si (mm): 1,3
- Max. width connecting link a1 (mm): 12,4
- Breaking load DIN/ISO min. (N): 7900
- Pitch x inner width p x b1: 9,53 x 4,68
- Weight: 1.71 kg
