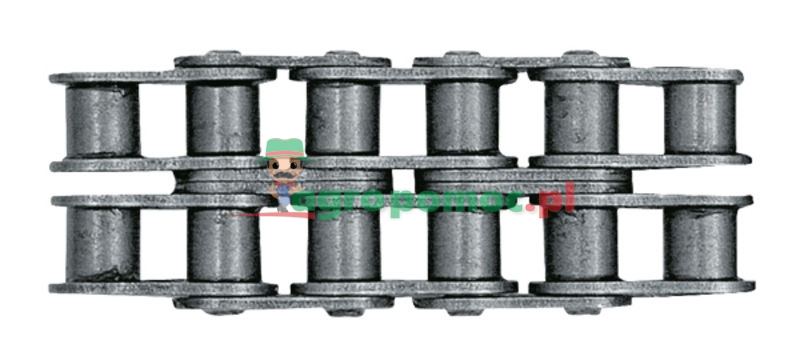

Rexnord 5m RexPro 06B-2 chain

• ISO no.: 06 B-2

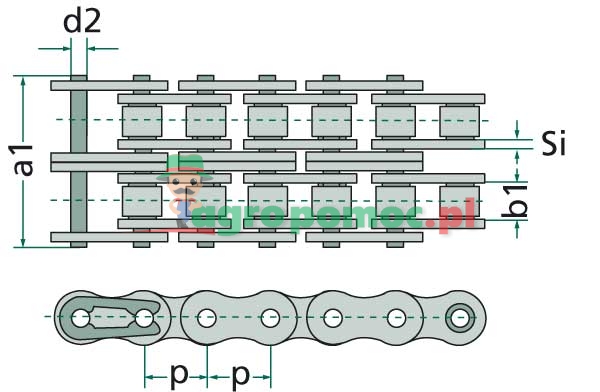

• Pitch x inner width p x b1 (imperial): 3/8" x 7/32"
• Pitch p (imperial): 0,375
• Pitch p (mm): 9,52
• Clearance width b1 (mm): 5,72
• Roller Ø d1 (mm): 6,35
• Bolt Ø d2 max. (mm): 3,28
• Inner link width b2 max. (mm): 8,53
• Fishplate height g (mm): 8,20
• Length of pin (mm): a1 max.: 23,8
• Breaking load DIN/ISO min. (N): 16900
• Weight: 3.93 kg
