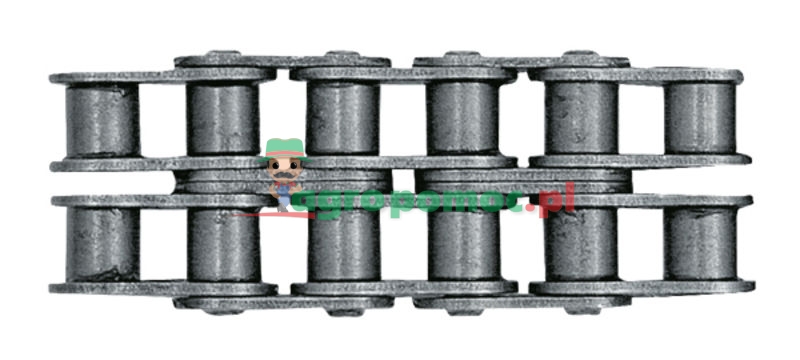

Rexnord 5m RexPro 20B-2 chain

• ISO no.: 20 B-2

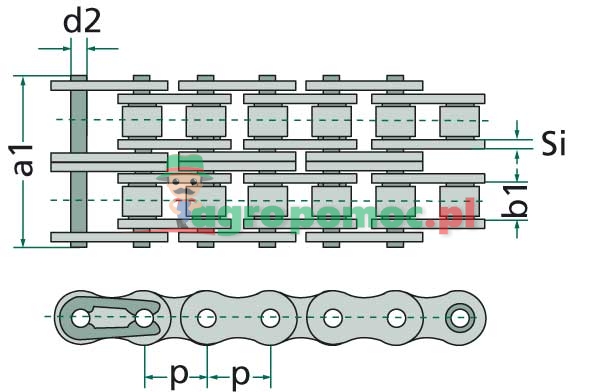

• Pitch x inner width p x b1 (imperial): 1 1/4" x 3/4"
• Pitch p (imperial): 1,25
• Pitch p (mm): 31,75
• Clearance width b1 (mm): 19,56
• Roller Ø d1 (mm): 19,05
• Bolt Ø d2 max. (mm): 10,19
• Inner link width b2 max. (mm): 29
• Fishplate height g (mm): 25,7
• Length of pin (mm): a1 max.: 76,9
• Breaking load DIN/ISO min. (N): 170000
• Weight: 7.5 kg
