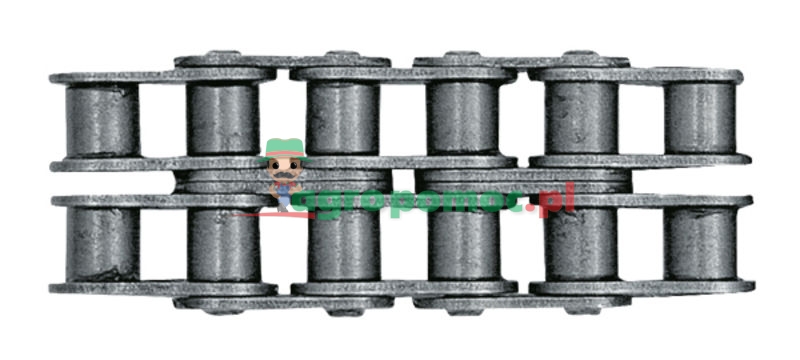

Rexnord 5m RexPro 16B-2 chain

• ISO no.: 16 B-2

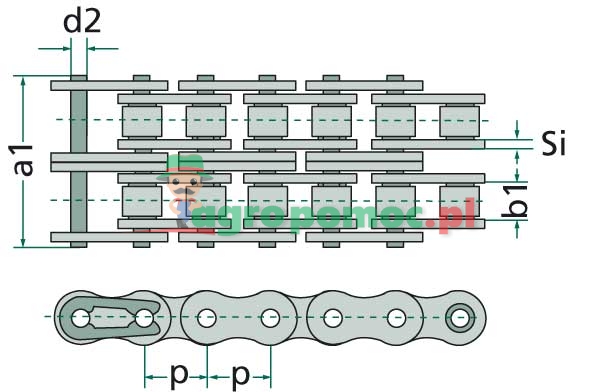

• Pitch x inner width p x b1 (imperial): 1" x 17,02 mm
• Pitch p (imperial): 1
• Pitch p (mm): 25,4
• Clearance width b1 (mm): 17,02
• Roller Ø d1 (mm): 15,88
• Bolt Ø d2 max. (mm): 8,28
• Inner link width b2 max. (mm): 25,4
• Fishplate height g (mm): 20,5
• Length of pin (mm): a1 max.: 67,4
• Breaking load DIN/ISO min. (N): 106000
• Weight: 5.2 kg
